Print not sticking to bed

Print not sticking to bed

Issue/Title

Print not sticking to bed

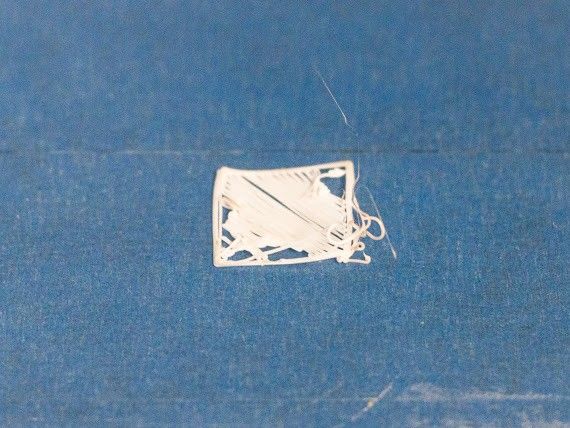

Example Image / Graphic




Issue Details

Insufficient bed adhesion



Cause 1

Bed is not level



Suggested Solutions 1

  1. Level bed

  2. Reduce print speed (first layer speed)



Cause 2

Incorrect nozzle calibration/offset



Suggested Solutions 2

  1. Adjust nozzle height

  2. Adjust first layer height (Use baby-stepping to ensure proper first layer height)



Cause 3

Improper bed surface or settings for filament



Suggested Solutions 3

  1. Change bed surface (glass/tape/BuildTak)

  2. Use adhesives (tape/glue/hairspray)

  3. Adjust bed temperature (for some materials)

  4. Adjust extrusion temperature

  5. Pro Tip - Use raft and brim
